    Multifunctional XY-1 100m Hard Rock Drilling Equipment

    Multifunctional Geological Drilling Rig Machine , XY-1 Hard Rock Drilling Equipment


    Description


    Geological Drilling Rig Machine is a new-design light-weight, high efficiency mainly applied to drill drilling water Wells, agricultural irrigation Wells and other well, especially for the mountain area and rock stratum for water supply projects. The rig adopt new type hydraulic pressure technology, and match a complete set of hydraulic motor with high torque and large diameter cylinder turn of the hydraulic oil cylinder propulsion.


    Technical and parameter


    XY-1 Rig Technical Specifications
    Main technical parametersPump
    Drilling depth(m)100mTypeGear pumps
    Hole diameter110mmModelYBC-12/80
    The final hole diameter75mmRated pressure8Mpa
    Rod diameter42-50mmFlow8ml/r
    Borehole inclination90°— 75°Rated speed1500r/min
    Rig Dimensions1640mm×1030mm×1440mm
    (L×B×H)
    Rig weight(Except the power machine500kgMotor and diesel
    GyratortypeZSⅡ00
    vertical speed142,285,570r/minRated Power11KW
    vertical stroke450mmRated speed2200r/min
    vertical load up the maximum speed3m/minElectric motor
    vertical load down the maximum speed4m/mintypeY160M-4
    The maximum vertical force feed15KNRated Power11KW
    The maximum vertical lifting force25KNRated speed1460r/min
    Pump

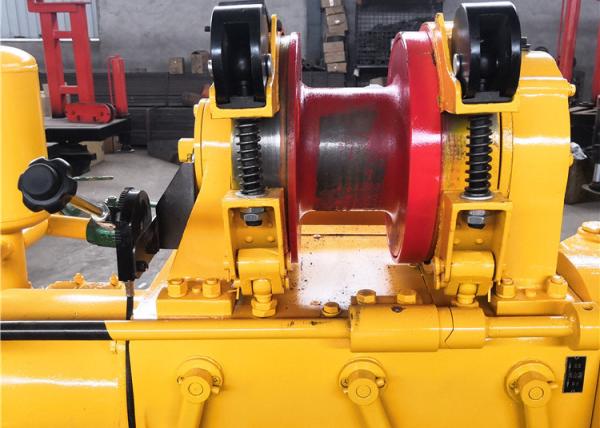

    WinchesTypeHorizontal single-cylinder double-acting
    The maximum lifting capacity ( a single rope speed )10KNThe maximum displacement99(77)L/min
    Reel speed55,110,220r/minThe maximum allowable pressure1.2Mpa
    Roll peripheral speed0.42,0..84,1.68m/sWorking Pressure0.7Mpa
    Reel diameter145mmThe number of strokes120(96)min
    Rope diameter9.3mmLiner diameter80mm
    Rope capacity27mPiston stroke100mm
    Brake diameter230mm
    Gate width50mm
