    Geo Technical Xy-1 Hydraulic Borewell Machine Soil Testing Portable

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : Geo Technical Drilling Rig XY-1 Soil Testing Portable Hydraulic Drill Machine
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Delivery Time : Within 7-12 days
    Supply Ability : 1000 sets per month
    • Product Details
    • Company Profile

    Geo Technical Xy-1 Hydraulic Borewell Machine Soil Testing Portable

    Geo Technical Drilling Rig XY-1 Soil Testing Portable Hydraulic Drill Machine


    XY-1 Hydraulic Drill Machine Description


    Customized XY-1 Exploration Geological Drilling Rig is a new type hydraulic pressure technology, and match a complete set of hydraulic motor with high torque and large diameter cylinder turn of the hydraulic oil cylinder propulsion.


    XY-1 Hydraulic Drill Machine Technical and parameter


    XY-1 Rig Technical Information
    Main technical parametersPump
    Drilling depth(m)100mTypeGear pumps
    Hole diameter110mmModelYBC-12/80
    The final hole diameter75mmRated pressure8Mpa
    Rod diameter42-50mmFlow8ml/r
    Borehole inclination90°— 75°Rated speed1500r/min
    Rig Dimensions1640mm×1030mm×1440mm
    (L×B×H)
    Rig weight(Except the power machine500kgMotor and diesel
    GyratortypeZSⅡ00
    vertical speed142,285,570r/minRated Power11KW
    vertical stroke450mmRated speed2200r/min
    vertical load up the maximum speed3m/minElectric motor
    vertical load down the maximum speed4m/mintypeY160M-4
    The maximum vertical force feed15KNRated Power11KW
    The maximum vertical lifting force25KNRated speed1460r/min
    Pump
    WinchesTypeHorizontal single-cylinder double-acting
    The maximum lifting capacity ( a single rope speed )10KNThe maximum displacement99(77)L/min
    Reel speed55,110,220r/minThe maximum allowable pressure1.2Mpa
    Roll peripheral speed0.42,0..84,1.68m/sWorking Pressure0.7Mpa
    Reel diameter145mmThe number of strokes120(96)min
    Rope diameter9.3mmLiner diameter80mm
    Rope capacity27mPiston stroke100mm
    Brake diameter230mm
    Gate width50mm

    XY-1 Hydraulic Drill Machine Characteristics

    1. Power can be equipped by electrical motor or diesel engine, as per your project needs;

    2. Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with good

    performance and long service life; With rapid and convenient hydraulic movable base, reliable

    hydraulic position locking, greatly improve the working efficiency before drilled hole, such as

    adding and taking off the drill rods ;

    3. Hydraulic part: piston rod adopts stern sealing ring(sealing ring for shaft),hydro-cylinder piston adopts Glyd ring(sealing ring for hole), up to international advanced level, with good

    sealing performance and durability;

    4. Easy to be disassembled, installed and operation.

    5. With large rotary torque which are better than the other same level drilling machines. The rotaryunit has different rotating speed grades, which can meet the requirements in different layers and different drilling projects.


    XY-1 Hydraulic Drill Machine Application
    XY-1 Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting. Road and construction survey, blast holes and other drilling operations.
    With hydraulic automatic feeding device. Elevated drilling efficiency.
    The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
    Centralized handle, easy operation, safe and reliable.
    The drilling machine,pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

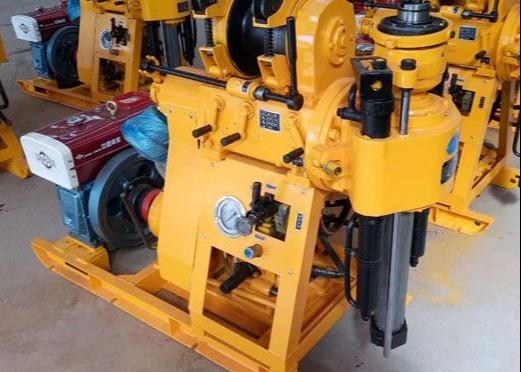

    Geo Technical Xy-1 Hydraulic Borewell Machine Soil Testing PortableGeo Technical Xy-1 Hydraulic Borewell Machine Soil Testing Portable
