305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole

    Buy cheap 305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole from wholesalers

    Buy cheap 305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole from wholesalers
    • Buy cheap 305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole from wholesalers
    • Buy cheap 305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole from wholesalers

    305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : ST-350
    Certification : ISO,CE,SGS,TUV,BV
    Price : 50000$/set
    Payment Terms : T/T, Western Union
    Supply Ability : 20000 sets per year
    Delivery Time : 7-10 days

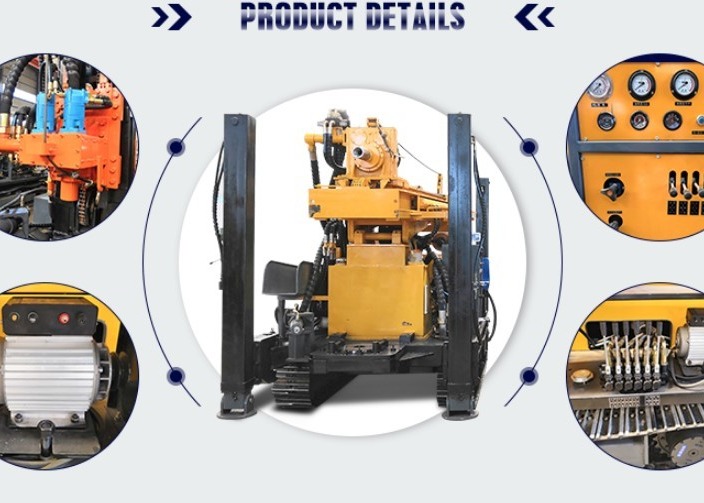

    • Product Details
    • Company Profile

    305mm Pneumatic Drilling Rig Crawler Hydraulic High Outrigger Deep Hole

    Crawler Hydraulic High Outrigger Pneumatic Drilling Rig Deep Hole Water Well Drilling Rig Machine


    ST 350 Pneumatic Drilling Rig Machine Descrption

    ST350 Water well drill rig is our hot sale products and have a very good reputation in our customers, in real drilling test, we drill a 219mm diameter , the depth reached to 325 meters, we believe the final depth can reach to 350 meters


    ST 350 Pneumatic Drilling Rig Machine Main Technical Data


    Drilling Rig Model Name
    ST 350 Pneumatic Drilling Rig Machine
    Drilling depth
    350m
    Dia.hole
    φ140 - 325mm
    Advance Length one time
    6.6m
    Working pressure
    1.7-3.3MPa
    Air consumption
    17-35m³/min
    Length of rod
    1.5m,2m,3m, 6m
    Dia. Of rod
    φ89,φ102,φ114
    Lifting power
    24T
    Rotation torque
    6200-85000N.m
    Rotation Speed
    55-115r/min
    Diesel Engine
    Yuchai
    Engine Power
    92Kw/2200rpm
    Travelling speed
    0-2.5 Km/h
    Climb capacity
    30°
    Weight
    9000kgs
    Dimension
    5900x2000x2850mm
    Application
    Complicated geological conditions: Rock, Mud, Sand etc.
    ST 350 Pneumatic Drilling Rig Machine Advantages

    1.Equipped with 92KW Yuchai brand turbocharged engine, strong power;

    2. Patented design composite boom, double cylinder lift, long stroke, large tonnage
    3. The main boom of each rig is equipped with a stopper to protect the cylinder; 4.Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road. 5.Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost 6. The travel motor is equipped with reducer, durable and long service life; 7.Fast distribution valve: the speed of three gears up to 150-160 rpm, basically achieve the dual-use function of water and air 8. Each hydraulic hose is covered with soft management set to make the hose last longer.


    ST 350 Pneumatic Drilling Rig Main Features
    1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
    2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
    3.Integrated automation equipment,All terrain moves by itself
    4.Adopt consummate design, long service life
    5.Self loading and unloading,easy to operating.

    ST 350 Pneumatic Drilling Rig Machine Applications

    It is mainly used for drilling in hilly, mountainous and other rocky areas. It has the advantages of large drilling diameter, deep drilling, fast footage, flexible movement and high efficiency. It is now widely used in industrial and civil drilling, geothermal drilling, environmental monitoring drilling and other occasions.
