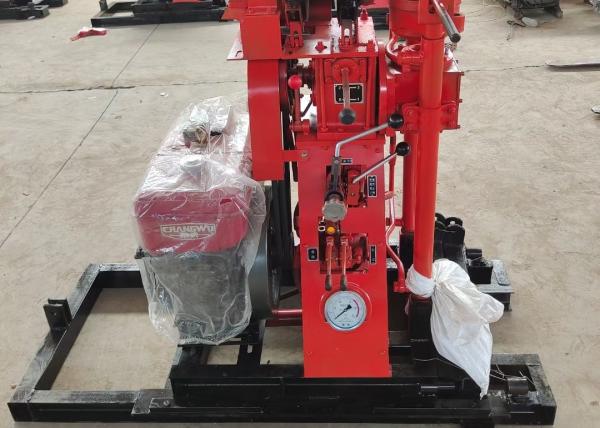

Small Portable Diamond Core Drilling Rig 50m Soil Drilling Machine

ST 50 Soil Testing Drilling Rig Product Information:

ST50 drilling rig is a high, medium and low speed drilling rig with oil pressure feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of core samples. It is a commonly used portable hydraulic drill at present. It is especially suitable for coring operations in special difficult terrain such as mountains, hills and rivers, and for engineering geological survey of buildings such as railways, hydropower, transportation, bridges and dam foundations; Geological core drilling and physical survey; Drilling of small grouting holes and blasting holes; Small well drilling.

ST 50 Soil Testing Drilling Rig Product Parameter:

Features of 50 hydraulic portable drilling rig

1. It has oil pressure automatic feeding mechanism and high drilling efficiency.
2. With ball clamp clamping mechanism and hexagonal active drill pipe, the rod can be inverted without shutdown.
3. The drilling rig is equipped with hydraulic winch, which can be used together with the drilling tower to facilitate drilling lifting.
4. Equipped with 4-speed transmission system. It is convenient for the operator to freely adjust the forward rotation speed according to the geological conditions. In addition, it is also equipped with slow reverse gear to facilitate the operator to disassemble the drill pipe and drilling tool.
5. The handle is centralized, easy to operate, safe and feasible.
6. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.
7. The drilling rig is equipped with a shift slide, which can quickly replace the drilling tool, saving time and labor.
8. Compact structure, small volume, light weight and small floor area.
9. It has strong decomposition ability and is easy to move. It is suitable for working in hilly, mountainous and other complex terrain.

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
