Top Quality GK 200 Customized Soil Sample Testing Equipment Core
Sample Drilling Machine

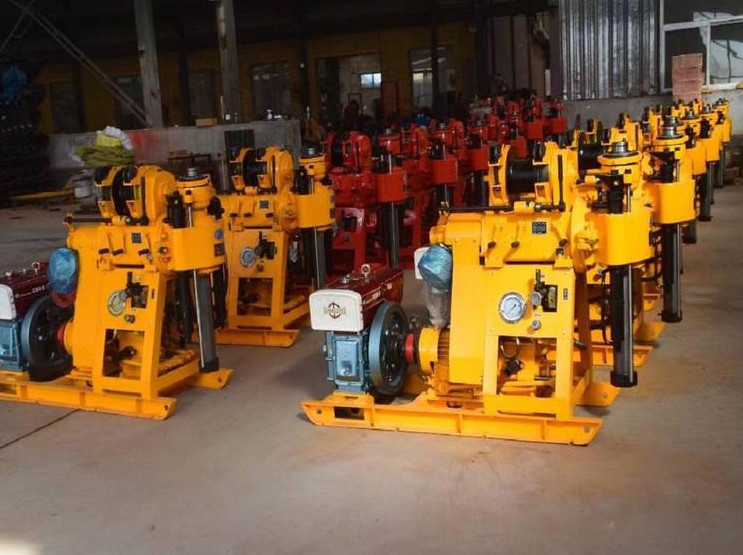

GK 200 Soil Testing Drilling Rig Product Information:
GK200 drilling rig is suitable for drilling wells, general
exploration, geophysical prospecting, road and construction
exploration, and blasting holes.It is widely used and hydraulic feeding , which
has the characteristics of large power, large lifting force (2T)
and high transmission torque.
GK 200 Soil Testing Drilling Rig Product Parameter:
| Drilling Rig | | Drilling diameter(mm) |
75,91,110,130,150,300 | | Drilling depth (m) |
200,150,100,70,50,30 | | Drill pipe diameter (mm) | 42,50 | | Drilling angle(°) | 90~75 | | Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) | | Rig weight (except engine) | 700 | | Gyrator | | Spindle speed (four gear) (r/min) | 115,230,505,1010 | | Spindle travel(mm) | 450 | | Spindle no-load lifting maximum moving speed(m/s) | 0.05 | | Spindle no load drop maximum movement speed(m/s) | 0.067 | | Spindle maximum feed pressure(KN) | 15 | | Spindle maximum lifting force(KN) | 25 | | Spindle maximum output torque(KN• m) | 1.5 | | Winch assembly | | Winch maximum lifting force (single rope) | 20 | | Reel speed (r/min) | 20,39,85,170 | | Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 | | Reel diameter(mm) | 140 | | Wire rope diameter(mm) | 9.3 | | Wire rope density (m) | 40 | | Brake diameter(mm) | 278 | | Brake band width (mm) | 50 | | Water pump | | Pump type |
Horizontal single cylinder double acting | | Maximum displacement (motor)(L/min) | 95(77) | | Work pressure (Mpa) | 1.2 | | Cylinder diameter (mm) | 80 | | Piston stroke(mm) | 100 | | The maximum allowable pressure (Mpa) | 1.2 |
| |
|
GK 200 Soil Testing Drilling Rig Features:
With the hydraulic feeding mechanism,improve the drilling
efficiency,reducing the labor intensity of workers.
The rig is equipped with a ball on a cassette holding mechanism and
a six side rod, the rod can be replaced without shutdown, high work
efficiency, safe and reliable
Furnished with hole bottom pressure gauge pressure indicator,and
easy to master the status inside the hole
The handle centered, convenient operation.
The drilling machine has the advantages of compact structure,small
volume,light weight,convenient move,decomposition and
strong,suitable for the plains or mountain areas.Adopting large
Kelly,double guide pipe. Increase the stability .
GK 200 Soil Testing Drilling Rig FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is
20-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?A:Sorry, free
sample is not available.
Q: What is your terms of payment ?A: Usually we accept T/T 30% in
advance, then pay the 70% T/T before shipping.
Q:How to order?
A:Please send us your inquiry with detail item description or with
Model number.
If there is no packing demand we take it as our regular exported
standard packing.
We will offer you an order form for filling. We will recommend you
the most suitable model according to information you offered.
After you send your detail requirement, we provide quotation to
you.
Q:Can I expect a quality products?
A:All the production and processing are strictly according to
international standard. At the same time, mature production
technology ensuring the quality satisfy international request. We
also welcome the third party inspection
Our Service For GK 200 Drilling Rig:
1.Small order is aceptable.
2.Good service and low price.
3.Fast reply.
4.12 Months quality guarantee.
5.Any third party testing is accepable.
