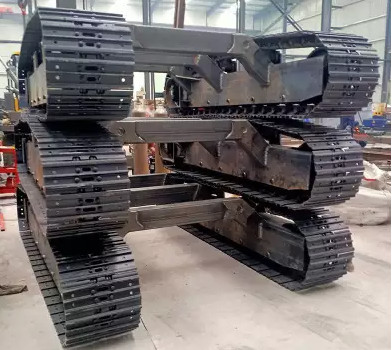

3 MT Industry Drilling Rigs' Crawler Track Undercarriage With Diesel Engine

Product Description

Track Undercarriage has wide application to small size agriculture machines and construction machines, like mini harvester, small truck, mini excavator, mini loader, drilling rigs, crawler concrete mixer, aerial platform, etc. It has features like: Small damage to ground, Low noise, High running speed, Small vibration, Low ground pressure, Large traction, Light machine weight...

Product Tech Details

Product Features

1, This Steel Crawler Undercariage is specially designed and manufactured for small equipments.
2, And this Steel Crawler Undercariage use low speed and high torque motor, the driving force is bigger
3, the crawler track and the chain plate are fixed with screw for maintenance convenience
4, Steel Crawler Undercariage is equipped with mechanical brake,will not slip away in the rampway
5, Crossbeam flange connection, easily disassembly and assembly
6, We have special personnel responsible for the design and model selection of Steel Crawler Undercariage, but we can also customize the Steel Crawler Undercariage according to customer's requirements

7).Less damage to the ground surface

8).Low noise

9).High running speed

10).Less vibration;

11).Low ground contack specific pressure

12).High tractive force

13).Light weight

14).Easy to change

Product Application

Crawler chassis assembly is mainly used for special occasions, such as military parade, tanks, armored vehicles, etc. What are its advantages: rubber track has the advantages of protecting the ground, rubber track walking system, low noise, low vibration, comfortable riding, etc. It is suitable for situations with high speed and many transfers, and achieves the all-road performance. Reliable electrical instruments and complete machine status monitoring system provide reliable assurance for the driver to operate correctly

The tracked chassis performance characteristics

1. upport the weight of the main engine and have the function of forward and backward turning and walking.

2. The steel track has undergone quenching treatment, with high hardness and durability. The rubber of the rubber track is embedded with a certain amount of core metal and steel wire cord, which has the advantages of low walking noise, no damage to the road surface, less vibration, and high speed.

3. Equipped with a built-in low-speed and high torque motor for walking reducer, it has high passing performance.

4. The walking frame structure has high strength and rigidity, and is made by bending and processing.

5. The supporting and guiding wheels adopt a floating oil seal structure and bearings, which are free from maintenance and refueling during use.

6. The supporting wheel, drag chain wheel, guide wheel, and driving gear teeth are all made of alloy steel, strictly in accordance with process requirements, and undergo quenching treatment, with good wear resistance and long service life.

Crawler drill has the following main features:

1. Crawler has strong carrying capacity, can withstand 2.5 tons of weight, large climbing capacity, simple operation and high drilling efficiency.

2. The four feet of the crawler chassis are hydraulic feet, and each foot is controlled separately, so that the entire crawler platform can be stably fixed on the ground.

3. Crawler platforms and drilling rigs are welded with square tubes. The design structure has high strength and good rigidity, and can be used for drilling rigs below 300 meters.

4. Crawler drilling rigs can be loaded with north exploration, long exploration, balance exploration, wide exploration and heavy exploration drilling rigs. Crawler tower can be customized according to the customer's drilling rigs.

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
